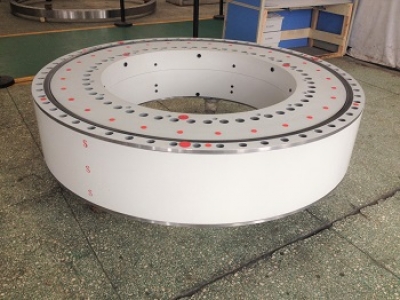

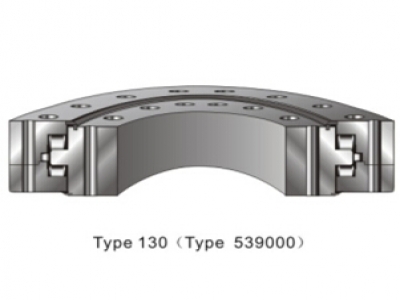

Designation |
Boundary Dimension |
Mounting Hole Size |
Basic load ratings |
Mass |
||||||||
LYC |
D |
d |
H |
D1 |
D2 |
n1 |
n2 |
φ1 |
φ2 |
Coa(10KN) |
Cor(10KN) |
(Kg) |
130.25.500 | 634 | 366 | 148 | 598 | 402 | 24 | 24 | 18 | 18 | 275 | 35.5 | 224 |
130.25.560 | 694 | 426 | 148 | 658 | 462 | 24 | 24 | 18 | 18 | 308 | 39.9 | 240 |
130.25.630 | 764 | 496 | 148 | 728 | 532 | 28 | 28 | 18 | 18 | 345 | 45.1 | 270 |
130.25.710 | 844 | 576 | 148 | 808 | 612 | 28 | 28 | 18 | 18 | 388 | 51.7 | 300 |
130.32.800 | 964 | 636 | 282 | 920 | 680 | 36 | 36 | 22 | 22 | 549 | 712 | 500 |
130.32.900 | 1064 | 736 | 182 | 1020 | 780 | 36 | 36 | 22 | 22 | 619 | 80.8 | 600 |
130.32.1000 | 1164 | 836 | 182 | 1120 | 880 | 40 | 40 | 22 | 22 | 689 | 90.3 | 680 |
130.32.1120 | 1284 | 956 | 182 | 1240 | 1000 | 40 | 40 | 22 | 22 | 768 | 102 | 820 |
130.40.1250 | 1445 | 1055 | 220 | 1393 | 1107 | 45 | 45 | 26 | 26 | 1110 | 146 | 1200 |
130.40.1400 | 1595 | 1205 | 220 | 1543 | 1257 | 45 | 45 | 26 | 26 | 1240 | 165 | 1300 |
130.40.1600 | 1795 | 1405 | 220 | 1743 | 1457 | 48 | 48 | 26 | 26 | 1420 | 190 | 1520 |
130.40.1800 | 1995 | 1605 | 220 | 1943 | 1657 | 48 | 48 | 26 | 26 | 1590 | 215 | 1750 |
130.45.2000 | 2195 | 1816 | 150 | 2127 | 1885 | 60 | 60 | 33 | 33 | 1690 | 66.3 | 1120 |
130.45.2240 | 2461 | 2019 | 231 | 2395 | 2085 | 60 | 60 | 33 | 33 | 2310 | 268 | 2700 |
130.45.2500 | 2721 | 2279 | 231 | 2655 | 2345 | 72 | 72 | 33 | 33 | 2580 | 302 | 3000 |
130.45.2800 | 3021 | 2579 | 231 | 2955 | 2645 | 72 | 72 | 33 | 33 | 2880 | 339 | 3400 |
130.50.3150 | 3432 | 2868 | 270 | 3342 | 2958 | 72 | 72 | 45 | 45 | 3590 | 381 | 5000 |
130.50.3550 | 3832 | 3268 | 270 | 3742 | 3358 | 72 | 72 | 45 | 45 | 4040 | 431 | 5600 |
130.50.4000 | 4280 | 3718 | 270 | 4192 | 3808 | 80 | 80 | 45 | 45 | 4560 | 487 | 6400 |
130.50.4500 | 4782 | 4218 | 270 | 4692 | 4308 | 80 | 80 | 45 | 45 | 5445 | 580 | 6942 |
