Designation |

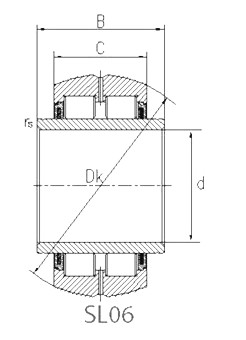

Boundary Dimension(mm) |
Basic Load ratings(KN) |
Limiting Speed r/min |
Weight |
||||||
INA CODE |
d |
D |
B |
C |
rsmin |
s |
Cr |
Cor |
(kg) |
|
SL06016E | 80 | 120 | 55 | 45 | 1.1 | 2.5 | 172 | 300 | 1300 | 1.8 |
SL06018E | 90 | 140 | 60 | 50 | 1.5 | 2.5 | 219 | 370 | 1200 | 2.95 |
SL06020E | 100 | 150 | 65 | 55 | 1.5 | 2.5 | 280 | 490 | 1100 | 3.45 |
SL06022E | 110 | 170 | 75 | 60 | 2 | 5 | 340 | 620 | 950 | 5.2 |
SL06024E | 120 | 180 | 75 | 60 | 2 | 5 | 350 | 660 | 850 | 5.5 |
SL06026E | 130 | 200 | 80 | 65 | 2 | 5 | 435 | 810 | 800 | 7.8 |
SL06028E | 140 | 210 | 85 | 70 | 2 | 5 | 495 | 930 | 750 | 8.55 |
SL06030E | 150 | 225 | 90 | 75 | 2.1 | 5 | 540 | 1020 | 700 | 10.5 |
SL06032E | 160 | 240 | 110 | 90 | 2.1 | 7.5 | 660 | 1260 | 650 | 14.3 |
SL06034E | 170 | 260 | 115 | 95 | 2.1 | 7.5 | 760 | 1420 | 600 | 18.1 |

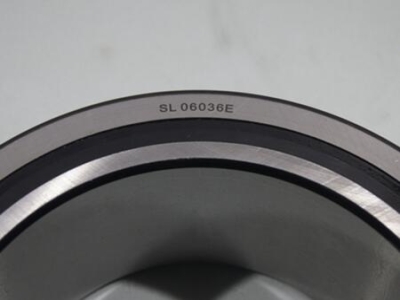

SL06036E | 180 | 280 | 120 | 100 | 2.1 | 7.5 | 790 | 1520 | 550 | 23 |
SL06038E | 190 | 290 | 135 | 110 | 2.1 | 10 | 950 | 1850 | 550 | 26.5 |
SL06040E | 200 | 310 | 140 | 115 | 2.1 | 10 | 1070 | 2060 | 500 | 32 |
SL06044E | 220 | 340 | 150 | 125 | 3 | 10 | 1260 | 2440 | 460 | 42 |
SL06048E | 240 | 360 | 155 | 130 | 3 | 10 | 1310 | 2600 | 430 | 46 |
